Pad Mount Transformer
Pad-mounted transformers are the standard solution for underground distribution networks in residential subdivisions, commercial developments, and industrial parks where overhead lines are impractical or prohibited. Enclosed in tamper-resistant, weatherproof cabinets and mounted on concrete pads at ground level, these units provide safe, accessible, and aesthetically acceptable power distribution without the visual impact of pole-mounted equipment. Sinotech prefabricated box transformer include:
Single-phase American Pad Transformer: Compact, integrated, reliable residential power supply
Three-phase American Pad Transformer: Loop & radial feed for urban grid distribution

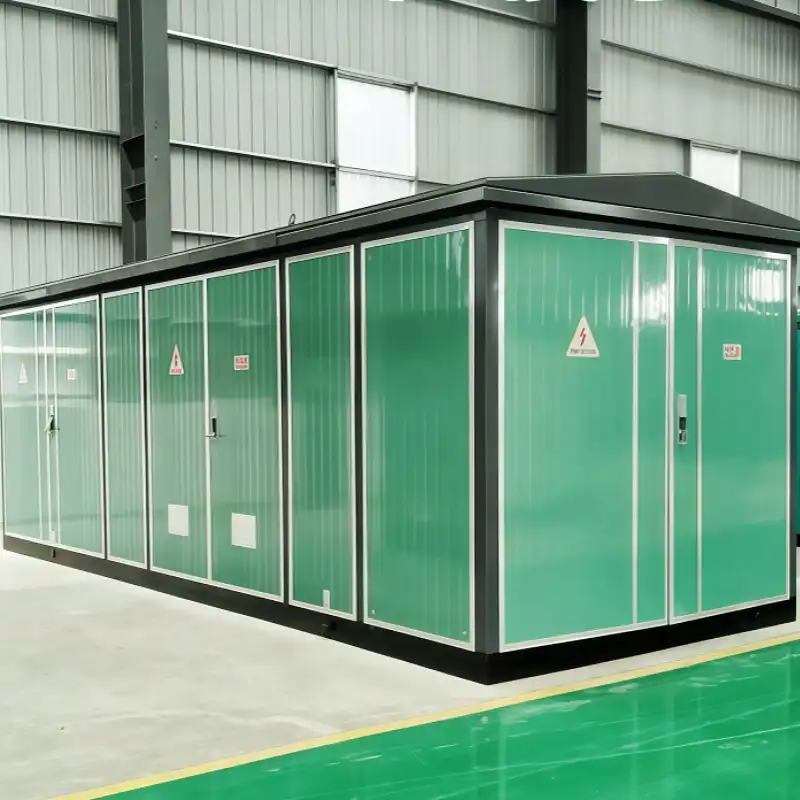

European Prefabricated Substation: Independent compartment, safe and easy maintenance
Chinese Compact Box Transformer: High protection, intelligent for new energy projects
Custom Pad Mount Transformer Manufacturer in China
Sinotech supplies pad-mounted transformers covering 75kVA to 5,000kVA with primary voltages from 4.16kV to 35kV and standard secondary outputs including 120/240V single-phase, 208Y/120V, 480Y/277V, and 600Y/347V three-phase configurations. Both live-front and dead-front designs are available to match local utility safety standards and maintenance protocols.
Primary Voltage
4.16kV to 35kV
Capacity
75kVA to 5,000kVA
Standards
ANSI/IEEE/DOE/CSA/AS
What Are the Standard Size of Sinotech Pad Mount Transformer?
| Rated Power(KVA) | High Voltage(V) | Low Voltage(V) | Loss(W) | |
| No-load Loss(W) | On-load Loss(W) | |||
| 75 kva Transformer | 34500/ 19920 13800/ 7957 13200/ 7620 12470/ or others | 240 480 480Y/ 277 600Y 347 | 180 | 1250 |
| 112.5 kva Transformer | 200 | 1500 | ||
| 150 kva Transformer | 280 | 2200 | ||
| 225 kva Transformer | 400 | 3050 | ||
| 300 kva Transformer | 480 | 3650 | ||
| 500 kva Transformer | 680 | 5100 | ||
| 750 kva Transformer | 980 | 7500 | ||
| 1000 kva Transformer | 1150 | 10300 | ||
| 1500 kva Transformer | 1640 | 14500 | ||
| 2000 kva Transformer | 2160 | 20645 | ||
| 2500 kva Transformer | 2680 | 27786 | ||
Note: Above Is Technical Parameters of American Type Pad Mount Transformer

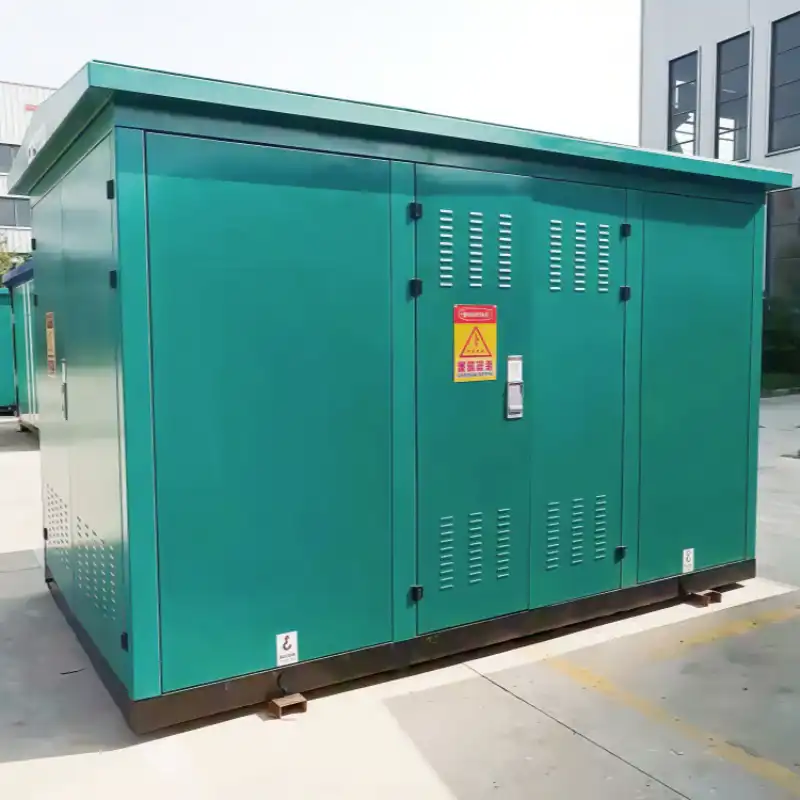

Custom Pad Mount Transformer Solutions
Designed for secure, outdoor, ground-level installations, our customized pad-mounted transformers feature tamper-resistant, heavy-duty enclosures that guarantee public safety and protect internal components from unauthorized access. Utilizing advanced anti-corrosion coatings, sealed tank construction, and superior insulation systems, these units deliver long-lasting durability and minimal maintenance, even in the harshest global climates or high-humidity regions.
Voltage and ratio customization at Sinotech means primary inputs from 4.16kV to 35kV with secondary outputs from 120V to 4.16kV in any standard or non-standard combination. Dual-ratio primary configurations are available for networks requiring tap switching between two voltage classes. Custom tap ranges beyond the standard ±10% are engineered with verified thermal and dielectric performance.

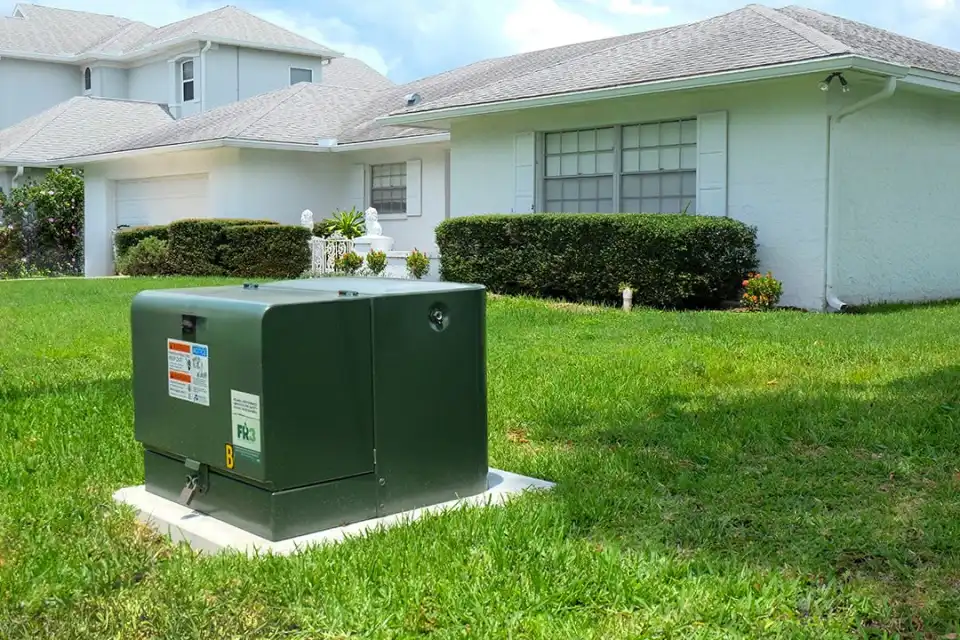

Residential Subdivisions and Housing Estates
Commercial and Retail Developments
Wind and Solar Farm Grid Integration Transmission
Advantages of Sinotech Pad Mount Transformer
High Energy Efficiency
Engineered with premium silicon steel cores and optimized windings, these units minimize core and load losses while meeting ANSI, IEEE, and DOE efficiency standards. This significantly lowers long-term operational expenses and builds a more sustainable distribution network.
Tamper-Resistant Build
Featuring heavy-gauge steel cabinets, secure lockable doors, and dead-front construction, these transformers isolate all live high-voltage components completely. This guarantees maximum public safety in residential and commercial areas without needing expensive security fencing.
Compact Ground Profile
The self-contained low-profile design combines core, switchgear, and protection devices inside a single ground-level enclosure. This eliminates large substation footprints and elevated structures, making it an ideal choice for urban settings where space is severely constrained.
Low System Maintenance
Built with anti-corrosive coatings, sealed tanks, and robust internal protection like Bay-O-Net fuses and pressure valves, these units withstand harsh weather easily. They demand minimal routine service, dramatically reducing system downtime and ongoing upkeep costs over time.
Flexible Customization
Available in single-phase and three-phase models, these transformers offer tailored primary switch options, loop or radial feed configurations, and vegetable oil fills. Their versatile design easily meets diverse grid specifications and varying utility project requirements globally.
Streamlined Fast Setup
Shipped as factory-assembled and fully tested turnkey solutions, these transformers require only placement on a concrete slab and cable connection. This streamlined process cuts on-site installation labor, reduces civil construction time, and accelerates project commissioning.
How to Choose the Right Pad Mount Transformer
Selecting the right pad mount transformer requires balancing power load demands, grid voltage specs, environmental conditions, and safety standards. As an experienced OEM manufacturer, Sinotech provides tailored engineering solutions based on these key factors.
1. Phase Configuration & kVA Power Capacity
- Single-Phase (10 kVA – 333 kVA): Designed primarily for residential subdivisions, street lighting, and light commercial applications (compliant with IEEE C57.12.38).
- Three-Phase (75 kVA – 5,000 kVA): Ideal for commercial centers, industrial plants, data centers, and solar/wind renewable integration (compliant with IEEE C57.12.34). Custom industrial units available up to 10,000 kVA.
- Selection Tip: Common demand capacities include 500 kVA, 1000 kVA, 1500 kVA, and 2500 kVA.
2. Primary & Secondary Voltage Ratings
- Primary High Voltage: Covering voltage classes up to 35 kV (including 4.16 kV, 11 kV, 13.8 kV, 22 kV, 24.9 kV, 33 kV, and 34.5 kV in Delta or Wye configurations).
- Secondary Low Voltage: Standard outputs starting from 0.4 kV:
- Single-Phase: 120/240V, 240/480V
- Three-Phase: 208Y/120V, 480Y/277V, 600Y/347V, or 415V/240V (IEC)
- Frequency & Taps: Supports 50 Hz / 60 Hz dual frequency and standard ±2 x 2.5% de-energized tap changers (DETC).
3. Circuit Configuration: Loop Feed vs. Radial Feed
- Radial Feed: Fed from a single high-voltage power source. It is a simple, cost-effective choice for standalone facilities with dedicated power lines.
- Loop Feed: Equipped with double high-voltage bushings (daisy-chain network). Allows utilities to isolate line faults without interrupting downstream power supply, providing higher grid reliability.
4. Winding Material: Copper vs. Aluminum
- Copper Windings (Cu): Offer superior conductivity, smaller equipment footprint, higher short-circuit mechanical strength, and longer thermal life.
- Aluminum Windings (Al): Highly economical, lighter in weight, and fully compliant with DOE energy efficiency standards. Ideal for budget-conscious projects.
5. Dielectric Liquid & Cooling Method
- Standard Mineral Oil (ONAN): Proven, standard liquid insulation and natural cooling for routine outdoor environments.
- Vegetable Bio-Fluid / FR3 Fluid (KNAN): High fire-point fluid (>300°C) offering enhanced fire safety, biodegradability, and extended insulation life. Recommended for dense urban areas or renewable energy sites.
6. Protection, Fuses & Internal Switches
- Overcurrent Protection: Dual fusing system featuring a Bay-O-Net expulsion fuse paired with an internal partial-range current-limiting fuse (CLF) for complete overload and high-fault protection.
- Switching Options: Internal oil-immersed loadbreak switches (2-position ON/OFF or 4-position loop feed switches) for safe sectioning and maintenance.
- Standard Gauges & Safety: Liquid temperature gauge, liquid level gauge, pressure/vacuum gauge, pressure relief valve (PRV), and under-oil elbow surge arresters.
7. Enclosure Integrity & Industry Standards
Sinotech cabinets comply with IEEE C57.12.28 for tamper resistance and weatherproofing (IP54 / IP55 / NEMA 3R rating), meeting DOE 2016 / 2026 energy efficiency guidelines, ANSI, CSA, or IEC 60076 standards.
Note: Unsure about the exact transformer specifications or local utility compliance for your project? Sinotech’s experienced engineering team offers free technical consultation and fully custom-tailored design solutions to match your precise grid requirements.
Pad Mount Transformer in Renewable Energy Projects
Global transition toward renewable energy has significantly expanded the application of pad mount transformer across solar farms, wind power installations, and remote microgrids. Serving as a crucial power link, these transformers ensure reliable voltage transformation, harmonic suppression, and seamless main grid integration.
Key Advantages in Green Energy:
Underground Cable Fits
Designed with subterranean high-voltage dead-front elbow connections, these transformers integrate effortlessly into underground cable collector networks. This eliminates vulnerable overhead wiring, reduces outage risks, and ensures clean solar and wind farm layouts.
Minimal Eco Footprints
Compact ground-level mounting avoids expansive substation land use and heavy civil works. Optional biodegradable vegetable fluid (FR3) prevents soil contamination in eco-sensitive green energy sites, maintaining high safety and total environmental safety.
Smart Grid Integration
Equipped with digital monitoring interfaces, oil temperature gauges, and smart pressure sensors, these units communicate crucial real-time grid data. This enables remote diagnostics, automated grid balancing, and seamless integration with modern smart grid networks.
Lower Power Grid Loss
Engineered with low-loss magnetic cores and inverter-duty design, these transformers reduce harmonic distortion and energy waste. High operating efficiency maximizes power delivery from renewable sources to the grid, boosting total overall project financial ROI.
Remote Location Safety
Constructed with heavy-duty anti-corrosive cabinets and under-oil surge arresters, these transformers operate safely in desert solar fields, coastal wind zones, and remote microgrids. They resist extreme temperatures, moisture, and severe electrical surges.
Installation and Site Preparation
The proper installation of a pad mount transformer is a rigorous multi-step engineering process that requires careful coordination between civil construction teams and electrical engineers.
Optimal Site Selection
Choosing a safe location requires maintaining strict fire clearances from surrounding structures, windows, and flammable materials per utility codes. The selected ground surface must be level and stable, with unhindered service vehicle access for future maintenance.
Concrete Slab Building
A reinforced concrete pad is poured following the manufacturer’s engineering drawings. The concrete pad must be perfectly level, structurally sound, and integrated with designated conduit openings and grounding grid attachments before setting transformer unit.
Trenching and Conduits
Underground trenches are excavated to precise depth specifications, and heavy-duty PVC or rigid conduits are laid down. These conduits safely route primary high-voltage and secondary low-voltage cables directly from the power supply source to the concrete pad base.
Safe Rigging Placement
Utilizing mobile cranes and heavy rigging equipment, the transformer is lifted and positioned onto the cured concrete pad. Technicians verify alignment with conduit stub-ups, secure the transformer enclosure to anchor bolts, and seal bottom cable entry point zones.
Cable Termination Work
Certified jointer technicians pull power cables through conduits into high-voltage and low-voltage compartments. Primary high-voltage conductors are terminated with loadbreak elbow connectors, while secondary conductors are bolted firmly to secondary spade terminals.
Grounding System Setup
Grounding is critical for electrical safety. The transformer steel tank, neutral terminals, and cabinet enclosure are securely connected to a dedicated earth electrode system using heavy copper ground wire to ensure fault protection and high operational safety.
Testing and Commission
Prior to energization, comprehensive electrical pre-commissioning field tests are conducted, including insulation resistance, winding turns ratio, and liquid level checks. Once utility inspection is complete, the transformer is safely energized for power supply.
Note: To eliminate costly project delays and site rework, Sinotech solves complex installation challenges—including mismatched cable entries, tight spatial clearances, and strict local utility compliance—through customized cabinet engineering, complete factory pre-testing, and expert technical support.
High Quality, Reliable, and Long lasting Box Substation
Over years of supplying pad-mounted transformers for international projects, Sinotech engineers have worked through hundreds of non-standard requirements that never appear in the catalog. Every unit is tested to IEEE C57.12.00 or IEC 60076 standards before shipment with actual measured values on the test report, not calculated estimates.
30+ Years of Industry Expertise
With over 30 years of combined experience in power electrical engineering, Sinotech brings unmatched technical depth to every project. Our team understands the complexities of different voltage levels, load profiles, and environmental conditions.
Large Manufacturing Capability
Sinotech operates a world-class manufacturing base capable of handling both small custom orders and large-volume utility projects. Our scale ensures consistent quality, competitive pricing, and reliable delivery for clients worldwide.
Comprehensive Product Portfolio
Sinotech offers a complete range of power transformation products, eliminating the need for multiple suppliers. From distribution transformers to prefabricated substations, we cover your entire power infrastructure requirements.
Full Customization Capability
Sinotech engineers custom transformer solutions for high-altitude zones, extreme temperatures, corrosive atmospheres, and renewable energy applications with documented project success.
IEC, ANSI, and CE Certified Quality
Every Sinotech transformer meets stringent international standards. We provide full test reports and certification documentation with each shipment, ensuring regulatory compliance in your target market.
Rigorous Quality Control Process
Quality is built into every step of our manufacturing process. From silicon steel core selection to vacuum oil filling, Sinotech maintains strict controls to guarantee performance, safety, and long service life.
Contact Us Now
OEM Pad Mount Transformer Supplier
Our production lines support both standard power transformer models and fully custom designs, with annual capacity exceeding 15,000 transformer units. We have successfully executed OEM orders for clients in Southeast Asia, the Middle East, Africa, Latin America and more.
Our production lines support both standard power transformer models and fully custom designs, with annual capacity exceeding 15,000 transformer units. We have successfully executed OEM orders for clients in Southeast Asia, the Middle East, Africa, Latin America and more.
Sinotech welcomes inquiries from distributors, brand owners, and EPC contractors seeking a reliable power transformer manufacturer.
Commercial Shopping Center — Saudi Arabia
“We required 14 pad mount transformers with loop-feed configurations for the underground network. The utility demanded dead-front design with load-break elbows — not all suppliers could meet the specification. Sinotech delivered units that passed utility inspection on first submission, which never happens with international suppliers. Installation was straightforward and the loop-feed system has been operating reliably through two summer seasons.”
