Pole Mount Transformer
Sinotech pole mount transformers are purpose-built for overhead power distribution networks, delivering reliable, low-maintenance voltage step-down from medium-voltage overhead lines to end-user service levels for utilities, electrical contractors, and industrial operators across global markets.
Heavy‑duty construction: All‑steel tank, fully sealed, corrosion‑resistant paint
Low‑loss core & windings: High‑grade silicon steel, pure copper windings (aluminum optional)
High efficiency: ≥98% efficiency, low noise, strong overload capability
Weatherproof design: For continuous outdoor use, wide temperature tolerance
Custom Pole Mount Transformer Manufacturer in China
Our product range covers single-phase (10kVA to 167kVA) configurations, rated for 15kV, 25kV, and 35kV primary voltages with secondary outputs tailored to regional standards including 120/240V, 277/480V, and 347/600V, all fully compliant with IEC 60076 and IEEE C57.12.20 international standards.
Primary Voltage
15-35kV
Capacity
5-333kVA
Standards
ANSI/IEEE/DOE/CSA/AS
What Are the Standard Size of Sinotech Pole Mount Transformer?
Rated Power (KVA) | High Voltage ( V) | Low Voltage ( V) | Loss(W) | Dimension(mm) | Weight(kg) | ||||
| No- load Loss(W) | On- load Loss(W) | W | D | H | oil Weigh | Total Weight | |||
| 5 | 34500 19920 13800 7957 7957 13200 7620 12470 7200 or others | 120-240 240-480 347 600 | 19 | 75 | 465 | 485 | 855 | 15 | 92 |
| 10 | 36 | 120 | 500 | 525 | 885 | 22 | 150 | ||
| 15 | 50 | 195 | 520 | 565 | 905 | 30 | 210 | ||
| 25 | 80 | 290 | 560 | 590 | 935 | 45 | 258 | ||
| 37.5 | 105 | 360 | 610 | 625 | 935 | 50 | 340 | ||
| 50 | 135 | 500 | 635 | 675 | 1035 | 62 | 395 | ||
| 75 | 190 | 650 | 745 | 840 | 1035 | 88 | 480 | ||
| 100 | 210 | 850 | 770 | 965 | 1135 | 94 | 530 | ||
| 167 | 350 | 1410 | 795 | 890 | 1335 | 138 | 680 | ||
Note: Above Is Standard Parameter About Our Pole Mount Transformer

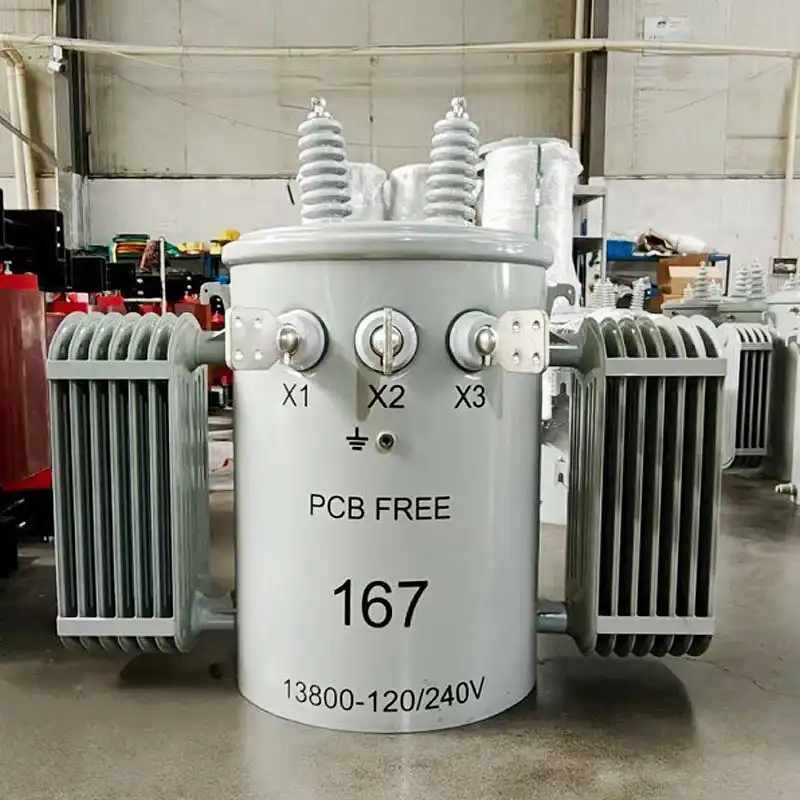

Custom Pole Mount Transformer Solutions
Each unit features a cold-rolled grain-oriented (CRGO) silicon steel core optimized to reduce no-load losses by 15-20% compared to industry baseline designs, with copper or aluminum windings available to match project budget and performance requirements
The welded steel tank is nitrogen-purged during assembly and equipped with pressure relief devices, oil level gauges, and durable porcelain or polymer bushings rated for regional lightning impulse levels, with optional completely self-protected configurations integrating primary and secondary circuit breakers plus lightning arresters directly into the tank to eliminate the need for external protection equipment
Our Global Projects
Pole Mount Transformer in Papua New Guinea
Pole Mount Transformer in Algeria
Pole Mount Transformer in Germany
Pole Mount Transformers to the Philippines
Pole Mount Transformers to El Salvador
Pole Mount Transformers to Zimbabwe
Pole Mount Transformer Application
Pole mount transformers are widely used in overhead power distribution networks for stepping down high voltage to low usable voltage. Our pole mount transformers are ideal for residential communities, rural power grids, villages and remote countryside electrification. They serve small commercial buildings, street lighting systems, roadside facilities and rural farm power supply. They also support temporary construction sites, mining area branch power supply, rural agricultural irrigation and small industrial workshop power distribution. Suitable for outdoor overhead installation, Sinotech overhead transformers adapt to harsh weather, coastal areas, high temperature and humid regions. Compact and easy to install, they are the preferred choice for urban and rural low-voltage distribution, decentralized load power supply and public utility power projects.
Rural and Agricultural Power Distribution

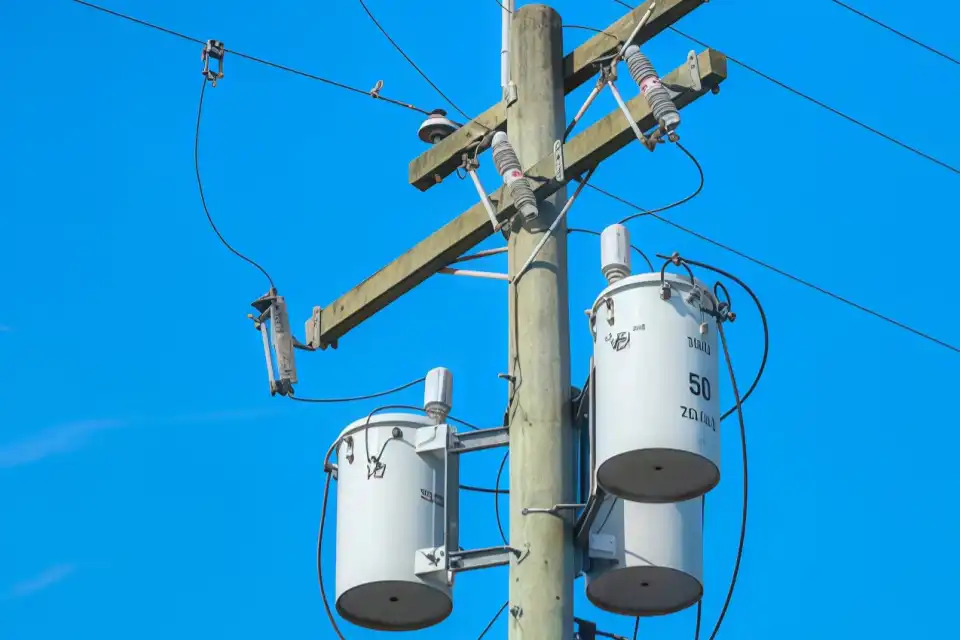

Villages and Remote Countryside Electrification
Temporary Power for Construction Sites

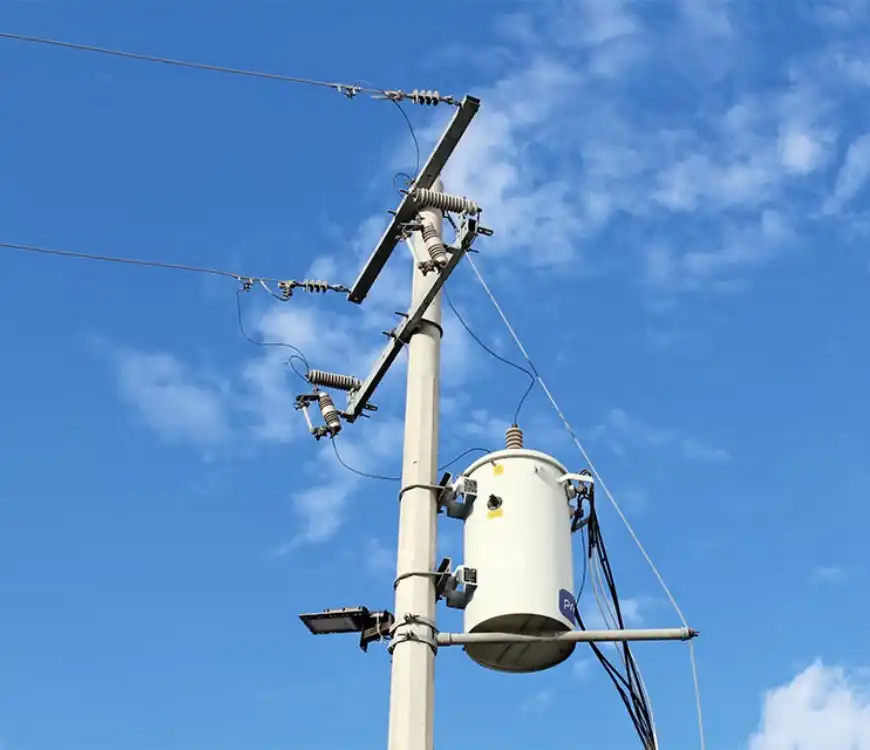

High Quality, Reliable, and Long lasting Pole Transformer
Our pole-mounted transformers are engineered with premium raw materials, strict production standards, and advanced manufacturing technology to deliver outstanding stability and durability for overhead power distribution systems. Built with high-performance silicon steel core and pure copper windings, these transformers feature low energy loss, high operation efficiency, and quiet running performance, perfectly adapting to long-term outdoor working conditions.
30+ Years of Industry Expertise
With over 30 years of combined experience in power electrical engineering, Sinotech brings unmatched technical depth to every project. Our team understands the complexities of different voltage levels, load profiles, and environmental conditions.
Large Manufacturing Capability
Sinotech operates a world-class manufacturing base capable of handling both small custom orders and large-volume utility projects. Our scale ensures consistent quality, competitive pricing, and reliable delivery for clients worldwide.
Comprehensive Product Portfolio
Sinotech offers a complete range of power transformation products, eliminating the need for multiple suppliers. From distribution transformers to prefabricated substations, we cover your entire power infrastructure requirements.
Full Customization Capability
Sinotech engineers custom transformer solutions for high-altitude zones, extreme temperatures, corrosive atmospheres, and renewable energy applications with documented project success.
IEC, ANSI, and CE Certified Quality
Every Sinotech transformer meets stringent international standards. We provide full test reports and certification documentation with each shipment, ensuring regulatory compliance in your target market.
Rigorous Quality Control Process
Quality is built into every step of our manufacturing process. From silicon steel core selection to vacuum oil filling, Sinotech maintains strict controls to guarantee performance, safety, and long service life.
Contact Us Now
OEM Pole Mount Transformer Supplier
Our production lines support both standard power transformer models and fully custom designs, with annual capacity exceeding 15,000 transformer units. We have successfully executed OEM orders for clients in Southeast Asia, the Middle East, Africa, Latin America and more.
Our production lines support both standard power transformer models and fully custom designs, with annual capacity exceeding 15,000 transformer units. We have successfully executed OEM orders for clients in Southeast Asia, the Middle East, Africa, Latin America and more.
Sinotech welcomes inquiries from distributors, brand owners, and EPC contractors seeking a reliable power transformer manufacturer.
Suburban Residential Distribution — Thailand
“We selected Sinotech for our 200-home residential development after comparing three suppliers. The price-to-quality ratio was the best we found for IEC-compliant units. Our electrical contractor noted the quality of the bushings and tank welding was noticeably better than previous projects with other suppliers.”
